BIPED

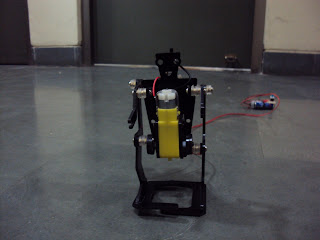

Dual Shaft Motor operated Biped Robot

This is a very simple Robot for beginners to understand the practical knowledge of mechanism and basic electronics.All the parts of biped robot are plug 'n' play type using the designing software like Corel Draw, Adobe Photoshop, Pro/Engineer ...that means you get all the parts individually for eg. hand, legs. body, motor, nuts, spacers etc.All you have to do is simply fix it as according to the instructable manual provided along with the Biped Robot.....And then Yipee!!!

Check out this video posted below.
